Prestige DTF Shaker Oven
Auto vs Manual Powder Shakers And Curing Ovens
While it is technically possible to cure the powder with a heat press, this process is very inefficient and the powder doesn’t always cure evenly which makes a mess of the print. Our curing unit uses infrared heat along with an auto-shaking system and a HEPA filter system so that you’re not breathing in the fumes as the powder cures on the print.
This system is our Prestige Miro 13 Max unit
With this unit, the print comes out of the printer and feeds directly into the auto shaker and curing unit ensuring an even layer of powder is applied and then cured to the print. It is then feed to the auto take-up spooler so you can leave the printer to churn out prints while you do other work. Our units have an integrated air filter system with user-replaceable filters.
Miro 13 Max DTF Powder Shaker and Oven
Miro 13 Max is the DTF Station's newest automatic DTF powder, shaker and dryer, developed specifically to pair alongside DTF Prestige A4, R1, R2 and R2 Pro DTF Solutions. With bottom platen heating for even, consistently cured transfers and a built-in air purifier for safer, more eco-friendly powdering, this shaker helps make powdering and curing your DTF transfers a breeze. Plus, at just 1170W (1.17KW), this shaker requires no special electrical adjustments to install or use. Coupled with its intuitive interface for easy operation you'll be printing and powdering transfers in no time.
- Built-in patented air purification system: Ensure your DTF print shop is safe and smoke-free without the hassle of an external purifier.
- Bottom Platen Heating: For even, consistently cured transfers every time.
- Curved Heating Platen: Ensures media fits and flows through the shaker smoothly.

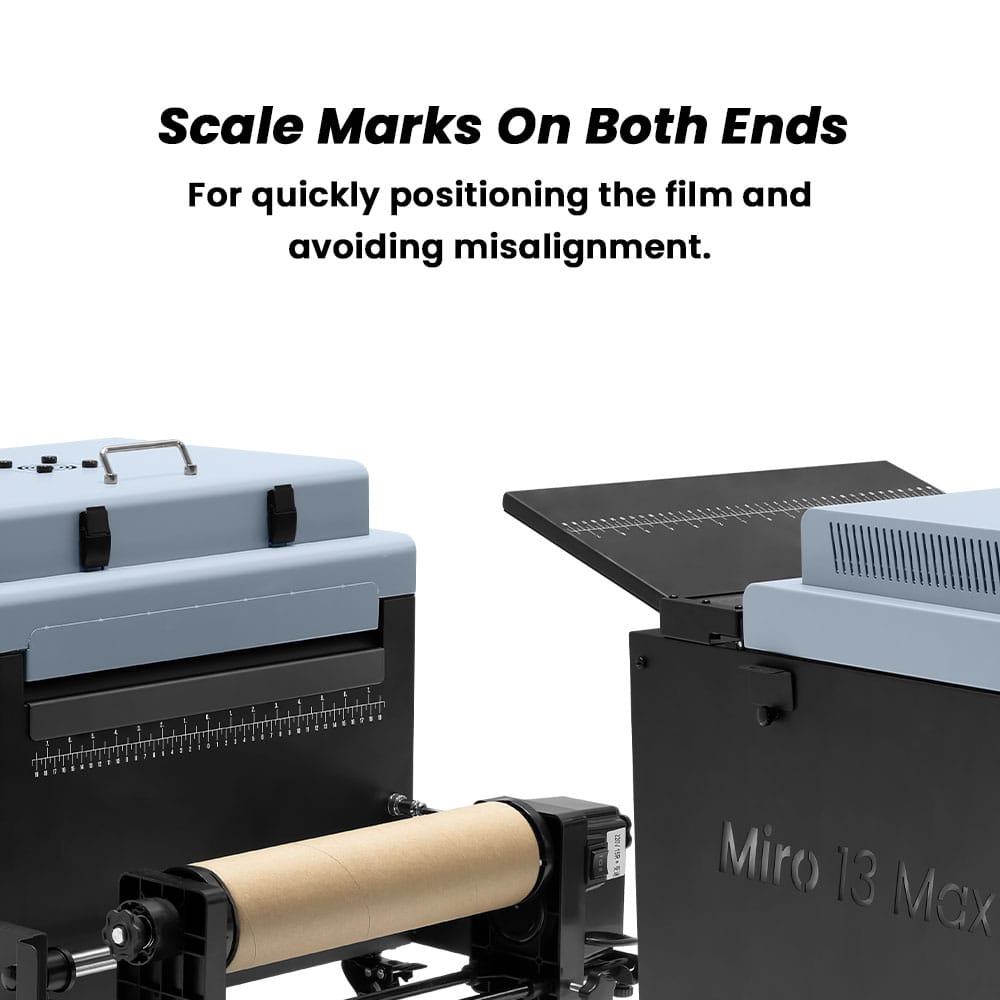

- Alignment markings: Markings on the shaker help you ensure your media is feeding correctly.
- 3-in-1 machine: Powdering, curing, and air purifying in one machine.
- Easy to use and set up: Intuitive control panel, turn the power on and start.
- Low power consumption: 1170W (1.17KW)
- Media width: 350mm.
- Machine weight: 32kg.
- Machine Dimensions: 1016mm x 599mm x 469mm.
- Warranty: 1 year.

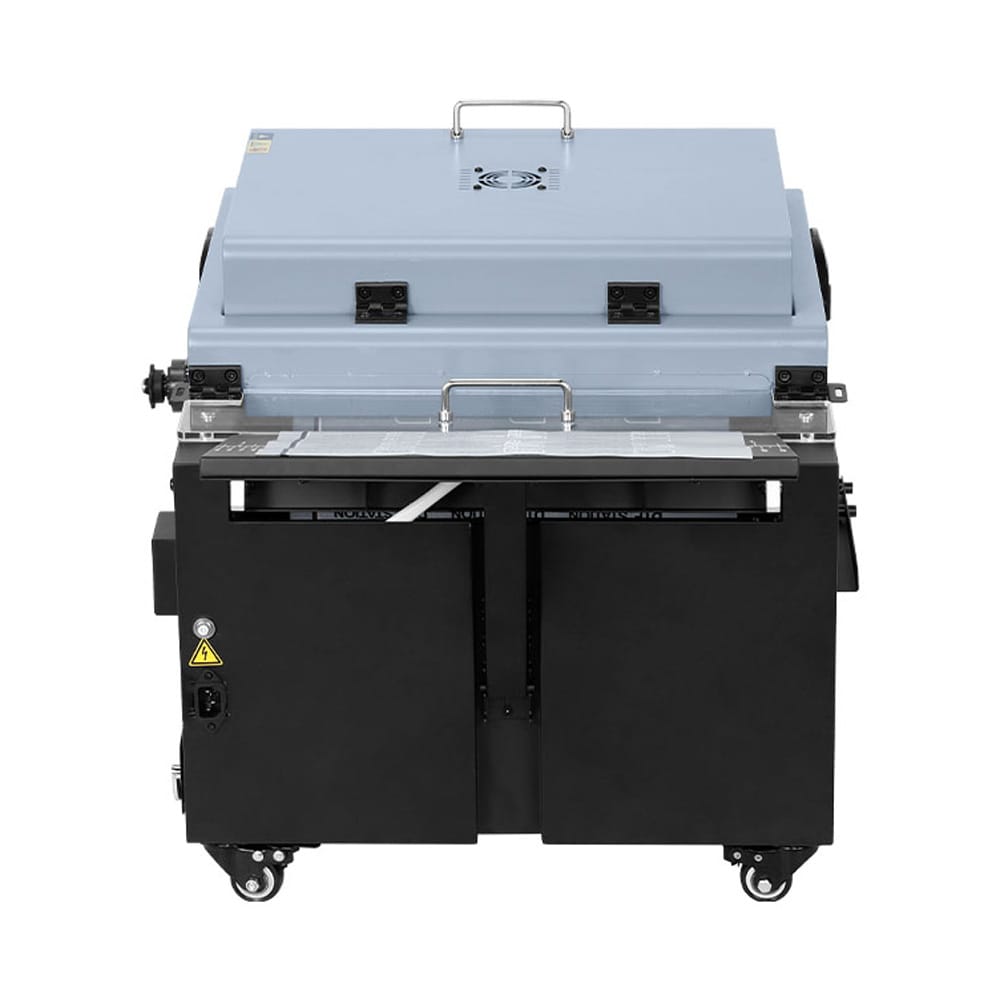

Front
Seismo M16 DTF Powder Shaker and Oven
The Seismo M16 shaker and oven was engineered for DTF printing entrepreneurs who operate their business with limited workspace and are looking for an affordable and automatic powdering machine. It provides an affordable option for those looking to shake powder and cure films in one machine.
• Maximum media width: 450mm large media width allows for the printing of larger designs without any issues. This feature provides greater design flexibility and allows printing on a wider range of materials.
• Amount of powder applied at one time: 0.3kg.
• Powder Collection Drawer: Yes.
• Machine Size: 870mm x 970mm x 1113mm.
• Powder Filling Box: No.
• Built-In Purifier: No (The purifier is separate. Using a purifier makes your workspace more eco-friendly).
• Shaker oven: Compatible with Prestige DTF L2 station model.
• Film curing: The Seismo M16 can also be used for film curing, ensuring that the final product is durable and long-lasting.
• Control panel: User-friendly, making it easy to operate the machine with just a few clicks.
• Efficient and even powder shaking: The Seismo M16 shaking mechanism is efficient, ensuring that powder is evenly distributed over your DTF film.
• Durable build: The machine is built to last, with sturdy construction that can withstand the demands of daily use.
• Low noise operation: The Seismo powder shaker operates quietly, making it a great choice for businesses operating in shared spaces.
• Warranty: 1 year.
• Special order on request (Non-refundable deposit).
- Front
DTF Curing Oven
The DTF IR curing oven is perfect for curing your DTF prints up to 50 x 40cm! Once you have printed your image and applied the DTF powder over your print you would need to cure the powder, this is where you would need to use the DTF IR curing oven. This oven is equipped with an integrated fume filter designed to purify any fumes generated during the curing process, thereby releasing clean air and ensuring the safety of your production space. Additionally, the new lower heating system and gas spring lifting mechanism help to ensure your prints cure with less power consumption and more even heating.
• Cure transfers within 1 minute at 1100C - 1200C.
• Bottom heating element: For more and even heating rather than older models with a top element.
• Self contained purification system.
• Digital control unit: Easy to set and allows precise settings of temperature and time for consistent results.
• Built-in purifier: Removes potentially fumes and particles passing through oven during the curing process.
• Easy to use.
• 1 year warranty.
DTF Curing Oven Front
